Industrial flatbed cutter
+7 (495) 231-10-00

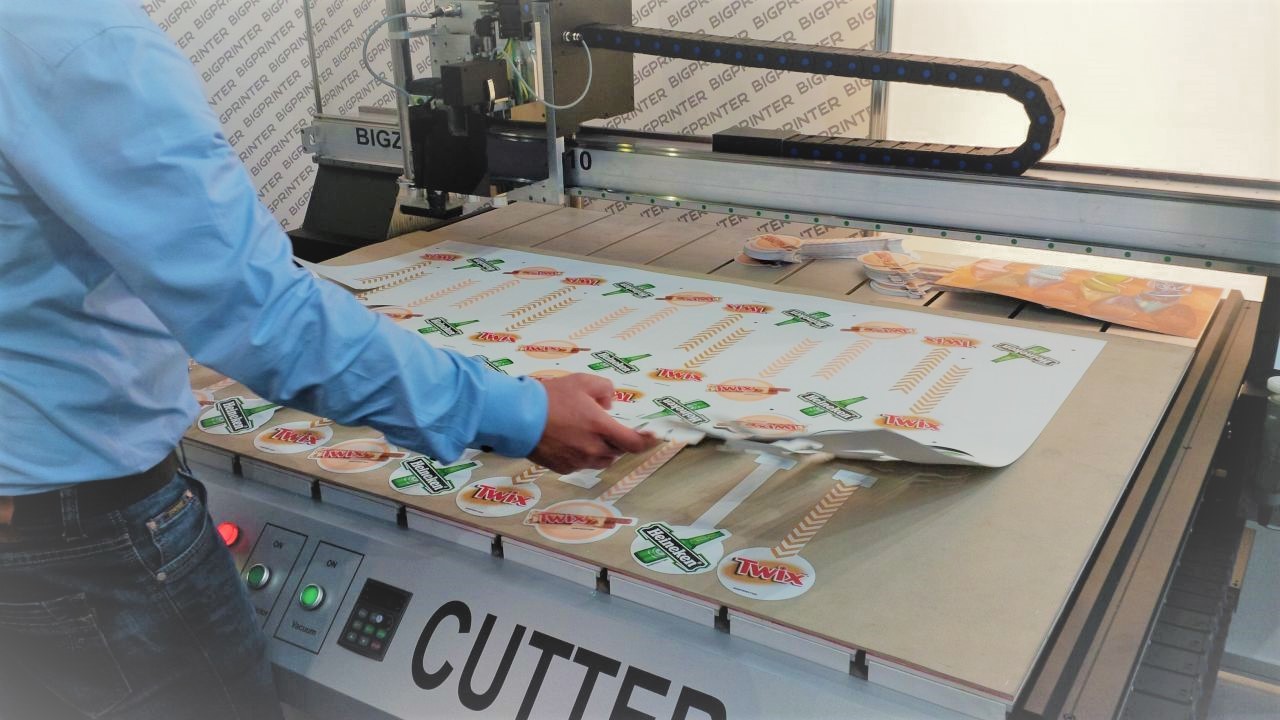

Industrial flatbed plotter
BIGZEE CUTTER
free movement speed up to 30/60/90 m/min!
BIGZEE CUTTER tool set includes:

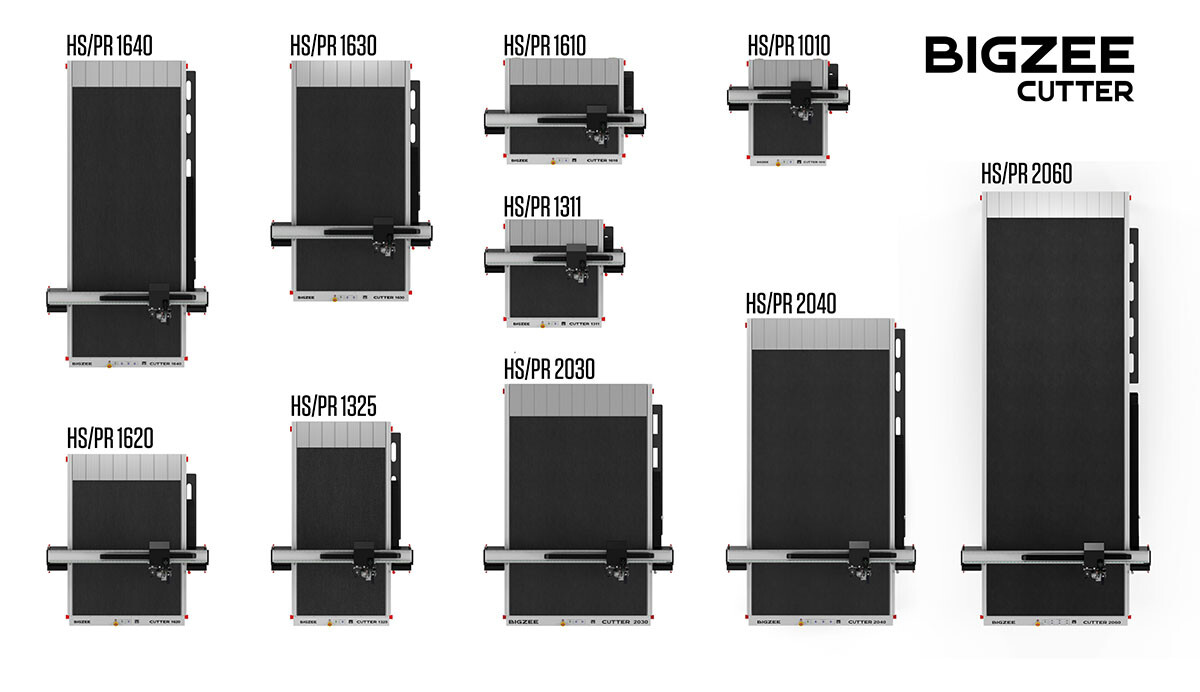

Specification BIGZEE CUTTER
PR series:
(PRECISION)
- Professional and user friendly cutter controller BPCS (BIGZEE Professional Control System)
- Gantry position auto alignment
- Machine settings remote diagnostics via Internet

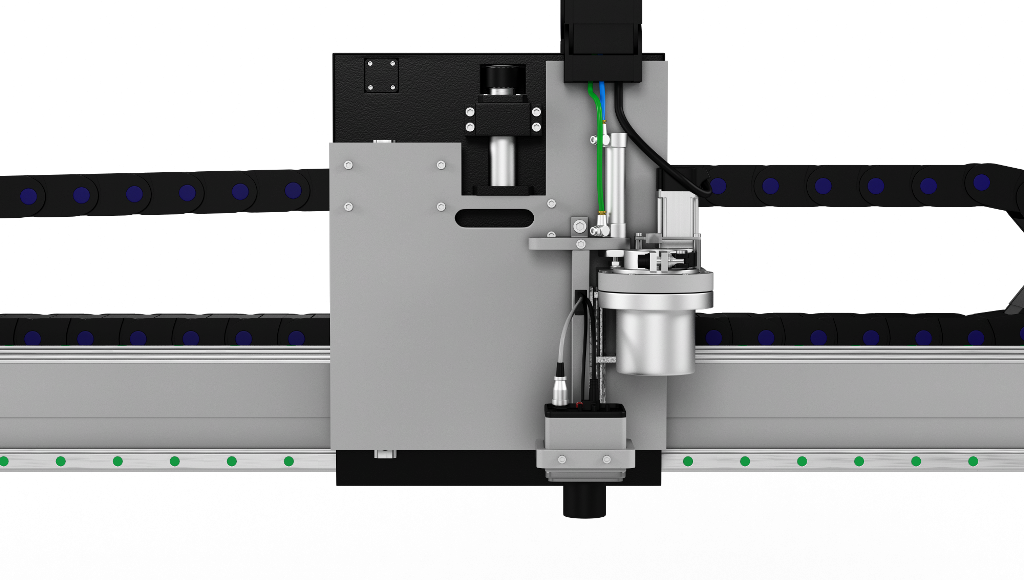

- Universal tool module (UM)
- Tangential knife for heavy materials (up to 5mm thickness) cutting
- X1, X2, Y axes powerful stepper motors; X and Y axes free movement speed up to 30m/min (depending on specification)
- Z and A axes precise servo motors
- X1, X2,Y axes helical racks
- Z axis ball screw assembly
- Z axis electro-magnetic brake
- Tool length measure switch
- Special cutting PAD for knifes; 4mm thickness
- PVC special table coating 10mm thickness for milling works
- Vacuum bed (4-12Kw depending on the working table size)
- High flexible (rank 6) cables with special sheath for long lasting life time
Additional options
Spindles:
- 1.5 kW, (collet ER-16), 24 000 rpm with air cooling fan
- 2.2 kW, (collet ER-20), 24 000 rpm with air cooling electric blower
Universal tool modules:
- Additional universal tool module (UM)
- V-cut universal heavy duty module (VUM)
Tools:
- Electric Oscillating Tool (EOT 1.0 mm), compatible with UM, VUM
- Electric Oscillating Tool (EOT 4.0 mm), compatible with UM, VUM
- Electric Oscillating Tool (EOT 6.0 mm), compatible with UM, VUM
- Heavy Duty angle cutting tool V-CUT 45°, compatible with VUM
- Heavy Duty angle cutting tool V-CUT 0°, compatible with VUM
- Kiss-Cut drag knife, compatible with UM, VUM
- Heavy duty Kiss-Cut tangential knife, compatible with UM, VUM
- Creasing wheel of 3 different profiles D50mm, compatible with UM, VUM
- Perforation wheel, with assembling kit
Registration mark cutting options
- Contour cutting system based on cutter controller (BPCS)
- BIGZEE Vision professional contour cutting system
Suction and Cooling systems
- Spindle aspiration hood with tubing for chip collection (without dust collector)
- Tool cooling system with sump and liquid level sensor
- Tool cooling system INTELECT with sump and liquid level sensor
Motion and Measurement Systems
- Planetary reduction gear (Japan) for stepper motors 1:8
- Rack and pinion movement stabilization system
- Servo motors (Japan) X1, X2, Y axes free movement speed 68-90 m/min depending on specification
Specification BIGZEE CUTTER
HS series
(HIGH SPEED)
- Professional and user friendly cutter controller BPCS (BIGZEE Professional Control System)
- Gantry position auto alignment
- Machine settings remote diagnostics via Internet
- Universal tool module (UM)
- Tangential knife for heavy materials (up to 5mm thickness) cutting
- X1, X2, Y, Z, A axes powerful servo motors; X and Y axes free movement speed up to 68-90m/min (depending on specification)
- Planetary reduction gear (Japan) X1, X2, Y axes
- X1, X2,Y axes helical racks
- Rack and pinion movement stabilization system
- Z axis ball screw assembly
- Z axis electro-magnetic brake
- Tool length measure switch
- Special cutting PAD for knifes; 4mm thickness
- PVC special table coating 10mm thickness for milling works
- Vacuum bed (4-12Kw depending on the working table size)
- High flexible (rank 6) cables with special sheath for long lasting life time
Additional options
Spindles:
- 1.5 kW, (collet ER-16), 24 000 rpm with air cooling fan
- 2.2 kW, (collet ER-20), 24 000 rpm with air cooling electric blower
Universal tool modules:
- Additional universal tool module (UM)
- V-cut universal heavy duty module (VUM)
Tools:
- Electric Oscillating Tool (EOT 1.0 mm), compatible with UM, VUM
- Electric Oscillating Tool (EOT 4.0 mm), compatible with UM, VUM
- Electric Oscillating Tool (EOT 6.0 mm), compatible with UM, VUM
- Heavy Duty angle cutting tool V-CUT 45°, compatible with VUM
- Heavy Duty angle cutting tool V-CUT 0°, compatible with VUM
- Kiss-Cut drag knife, compatible with UM, VUM
- Heavy duty Kiss-Cut tangential knife, compatible with UM, VUM
- Creasing wheel of 3 different profiles D50mm, compatible with UM, VUM
- Perforation wheel, with assembling kit
Registration mark cutting options
- Contour cutting system based on cutter controller (BPCS)
- BIGZEE Vision professional contour cutting system
Suction and Cooling systems
- Spindle aspiration hood with tubing for chip collection (without dust collector)
- Tool cooling system with sump and liquid level sensor
- Tool cooling system INTELECT with sump and liquid level sensor

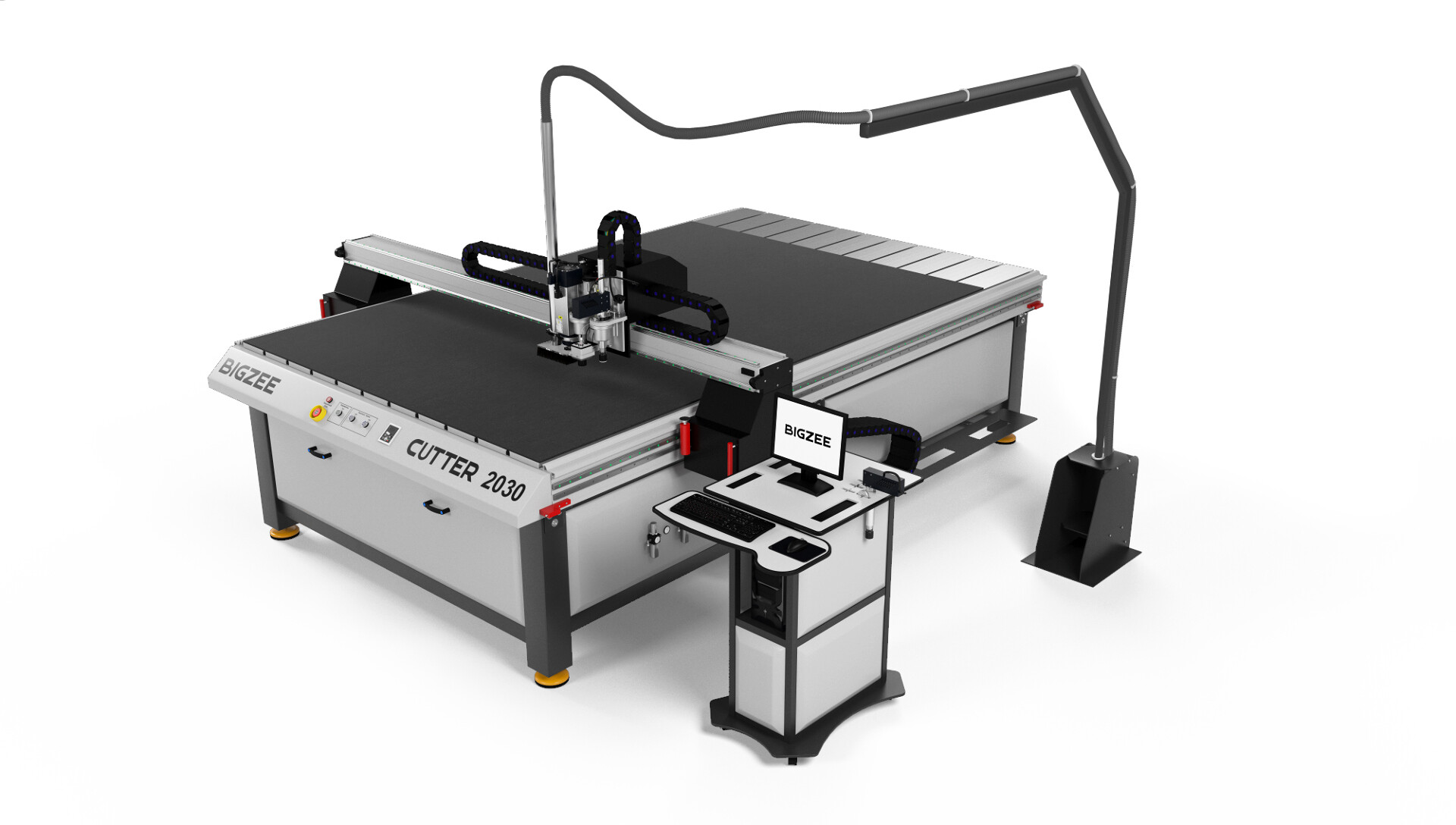

The machine is designed with an extremely strong steel frame at it’s core. This gives it the strength to take advantage of the specially designed vacuum chamber table produced from precision milled profiles with an aluminium coating. This provides for an extremely flat and stable vacuum table. To protect the table, for a long service life, the machine is also supplied with a foam pvc sacrificial layer and a special coated cutting pad for even better tool life. The powerful stable beam (gantry) of the big cutter series reduces vibrations, ensures the longest possible tool life and highest cut quality.

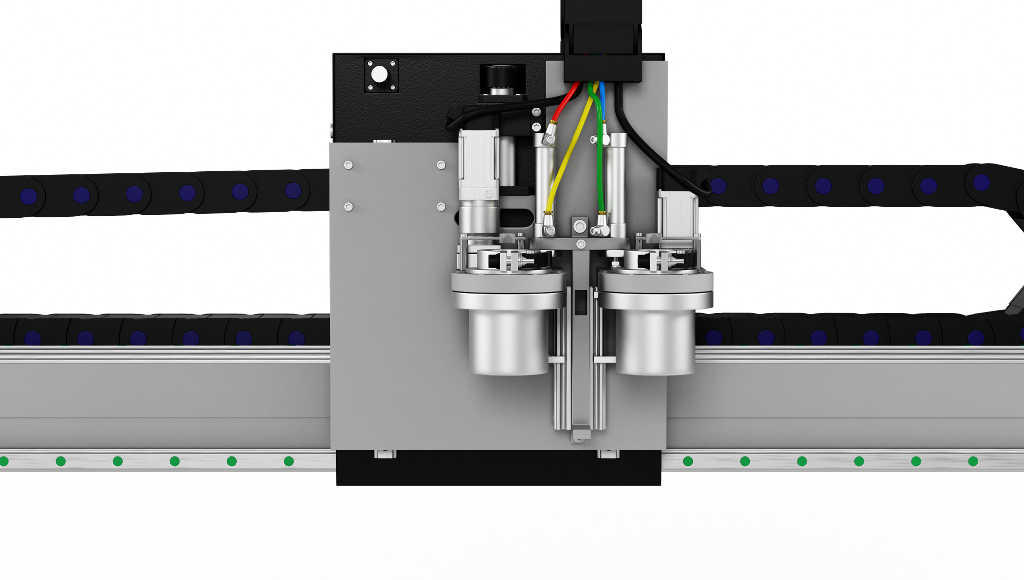

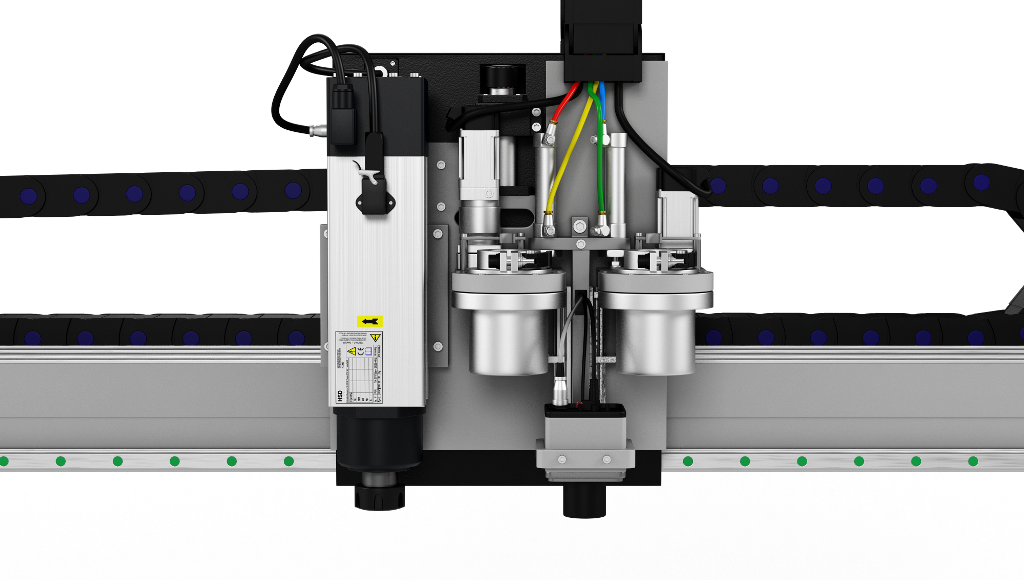

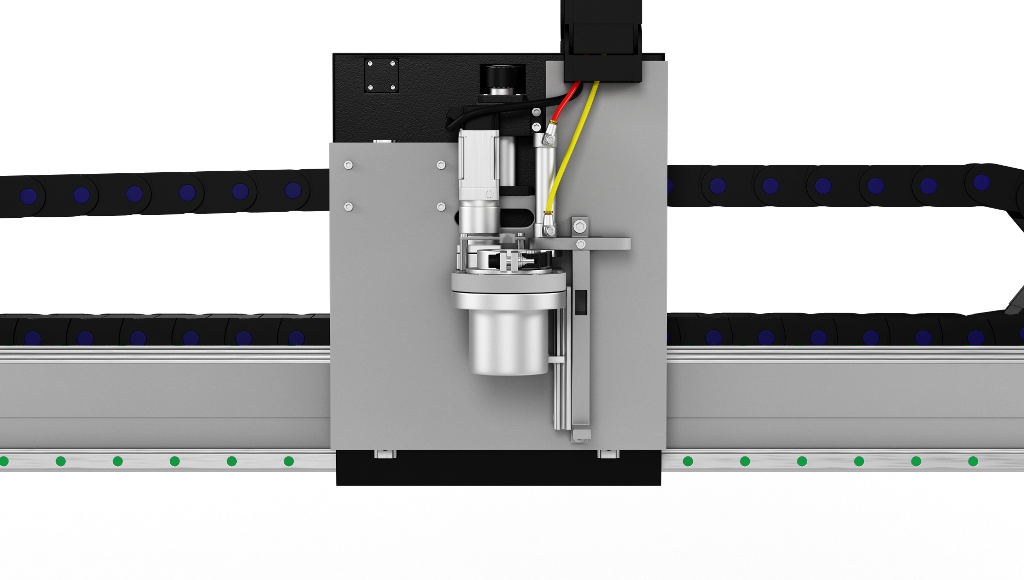

Electric Oscillating Tool (EOT 1.0 mm)
Electric Oscillating Tool (EOT 4.0 mm)

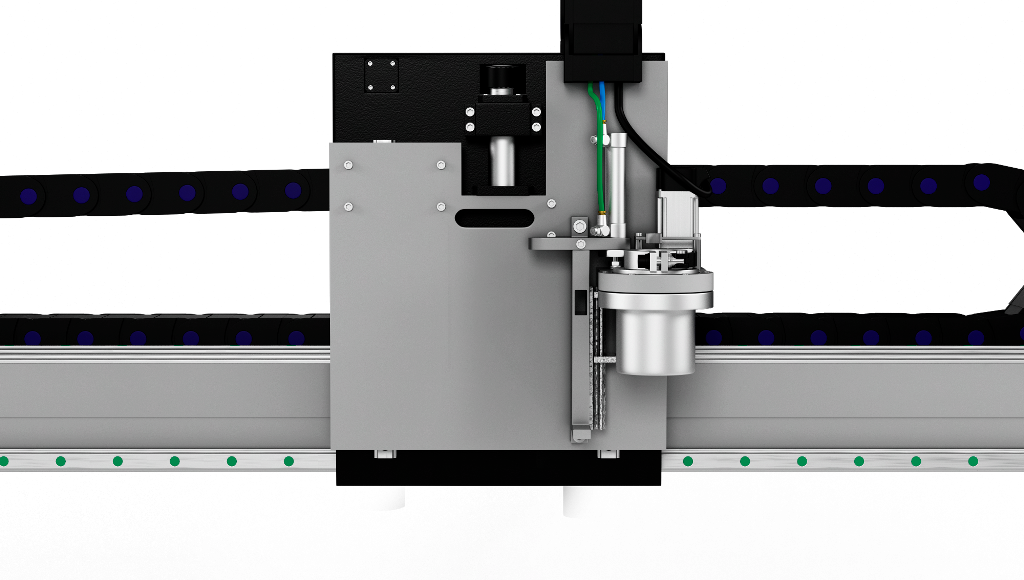

Tangential knife for heavy materials (up to 5mm thickness)
Creasing wheel of 3 different profiles D50mm
Creasing wheel with big wheel (1 pcs) diameter D80 mm (for corrugated board)
Perforation wheel
Punch for punching holes with a diameter (1, 1.5, 2, 3, 4, 5, 6 mm)
Rotary instrument DRT

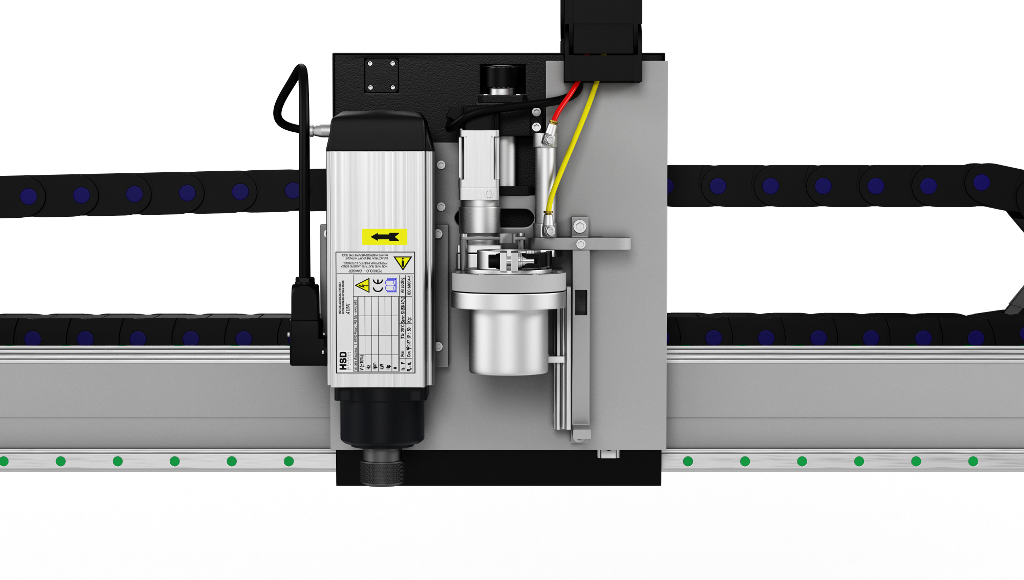

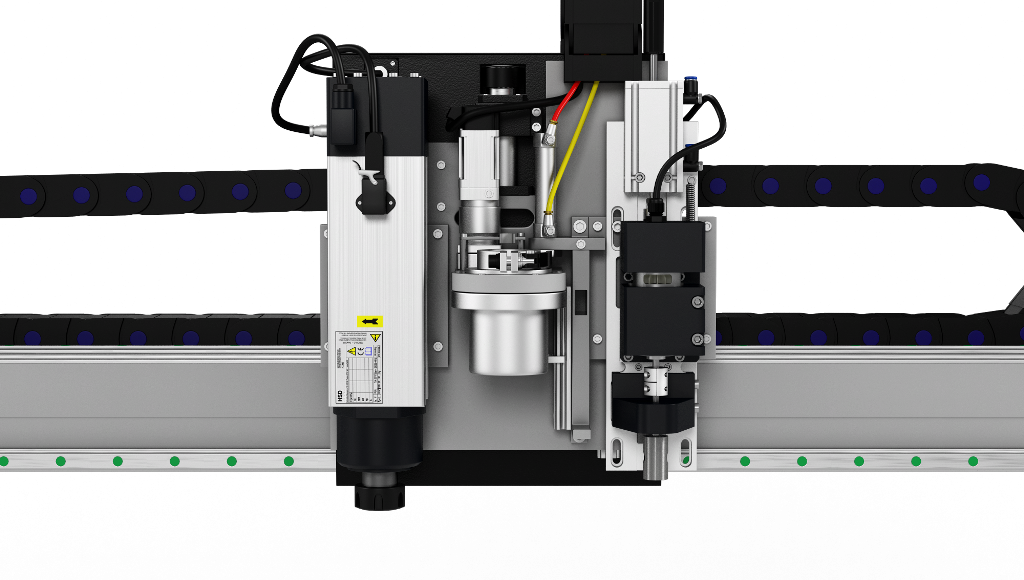

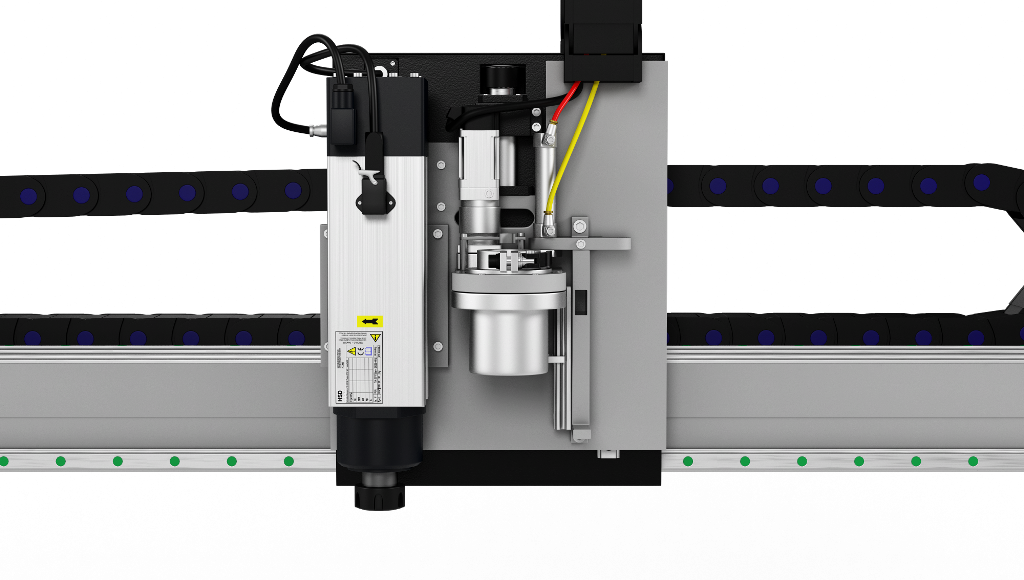

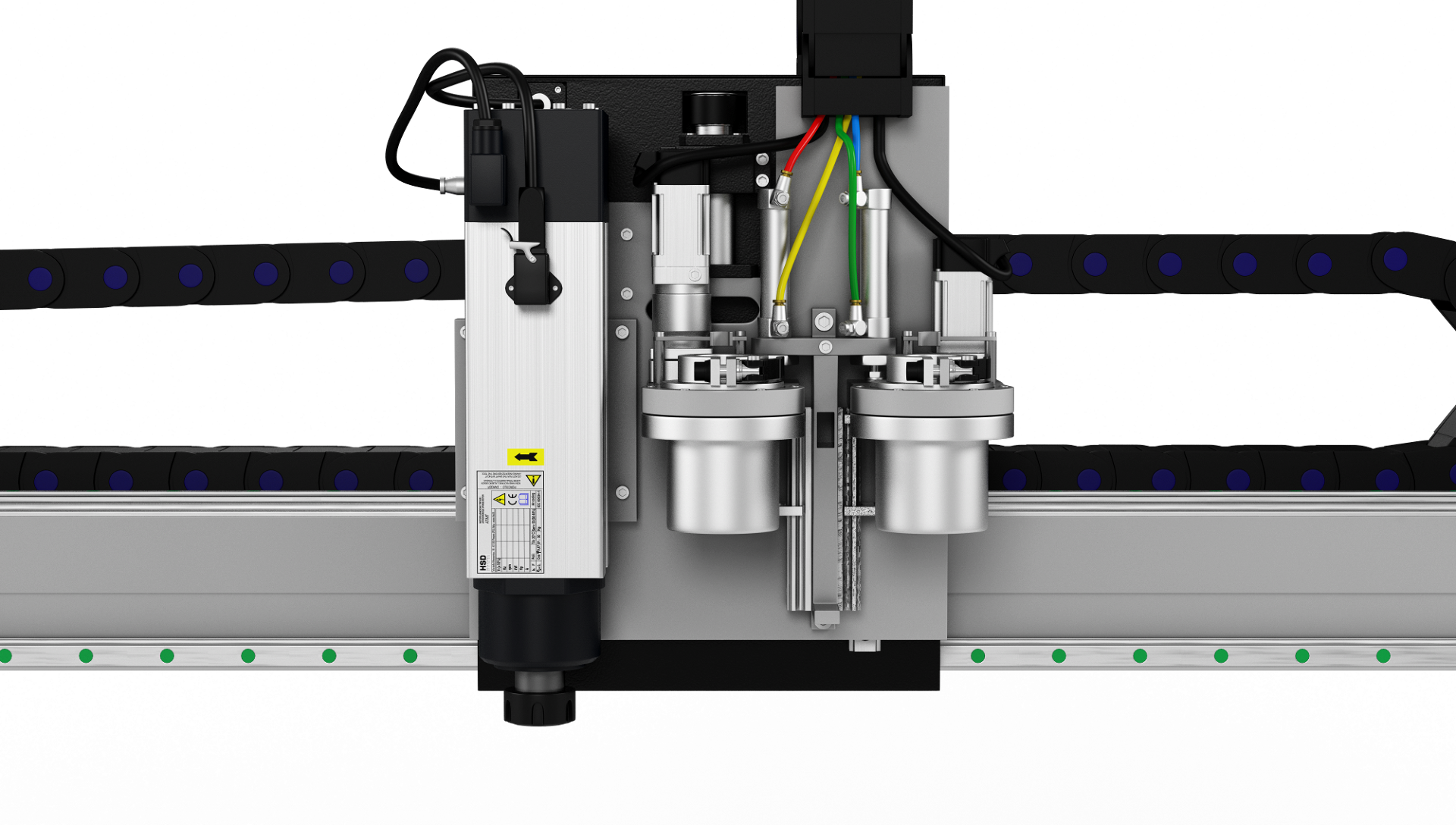

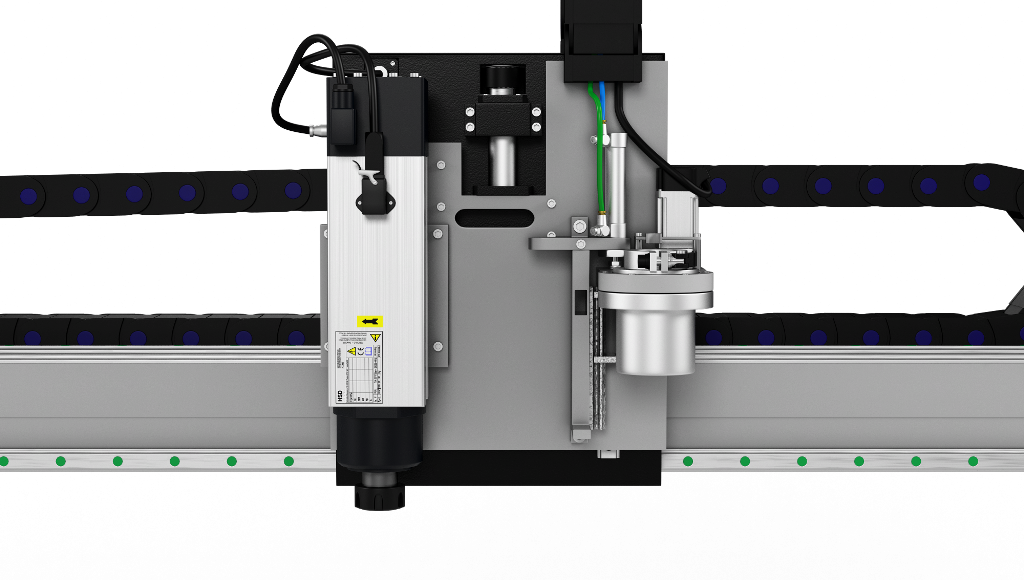

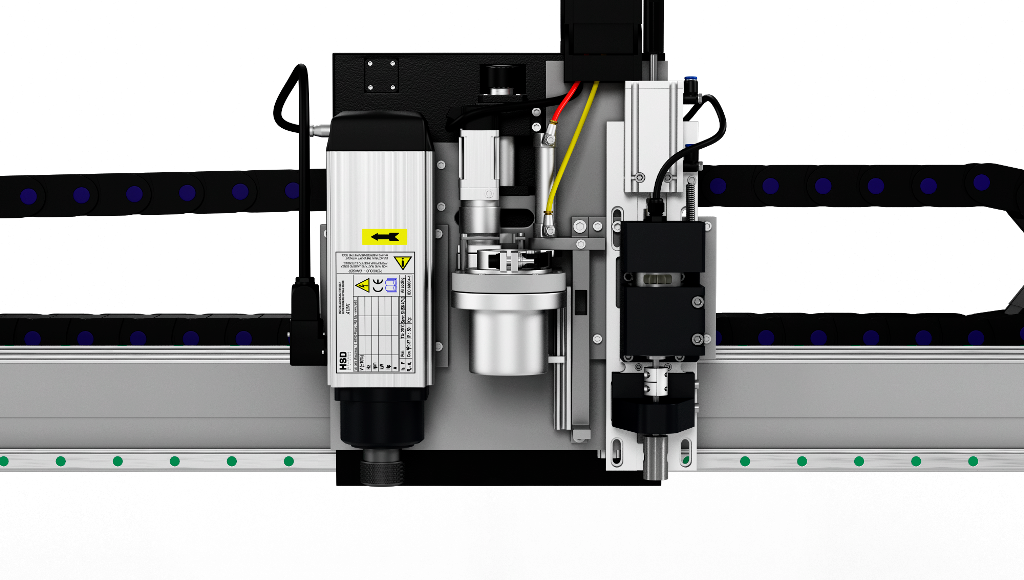

Spindle installation 1,5 kW (collet ER-16) (220 volts) 24,000 rpm with air cooled fun
Heavy duty Kiss-Cut tangential knife
Kiss-Cut drag knife

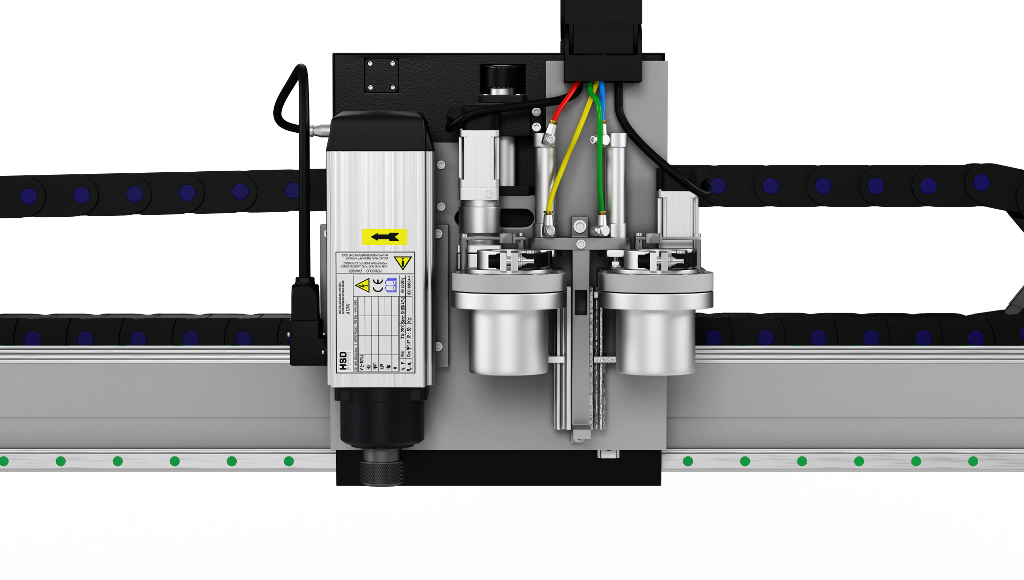

Spindle installation 2.2 kW (collet ER-20) (220 volts) 24,000 rpm with air electric blower
Angle cutting tool V-CUT (0°、15°、22.5°、30°、45°)
Angle cutting tool V-CUT 0°
Angle cutting tool V-CUT 45°
Marker (spring-loaded holder for marker, pen, pencil)
Pneumatic Oscillating Tool (POT 8.0 mm)

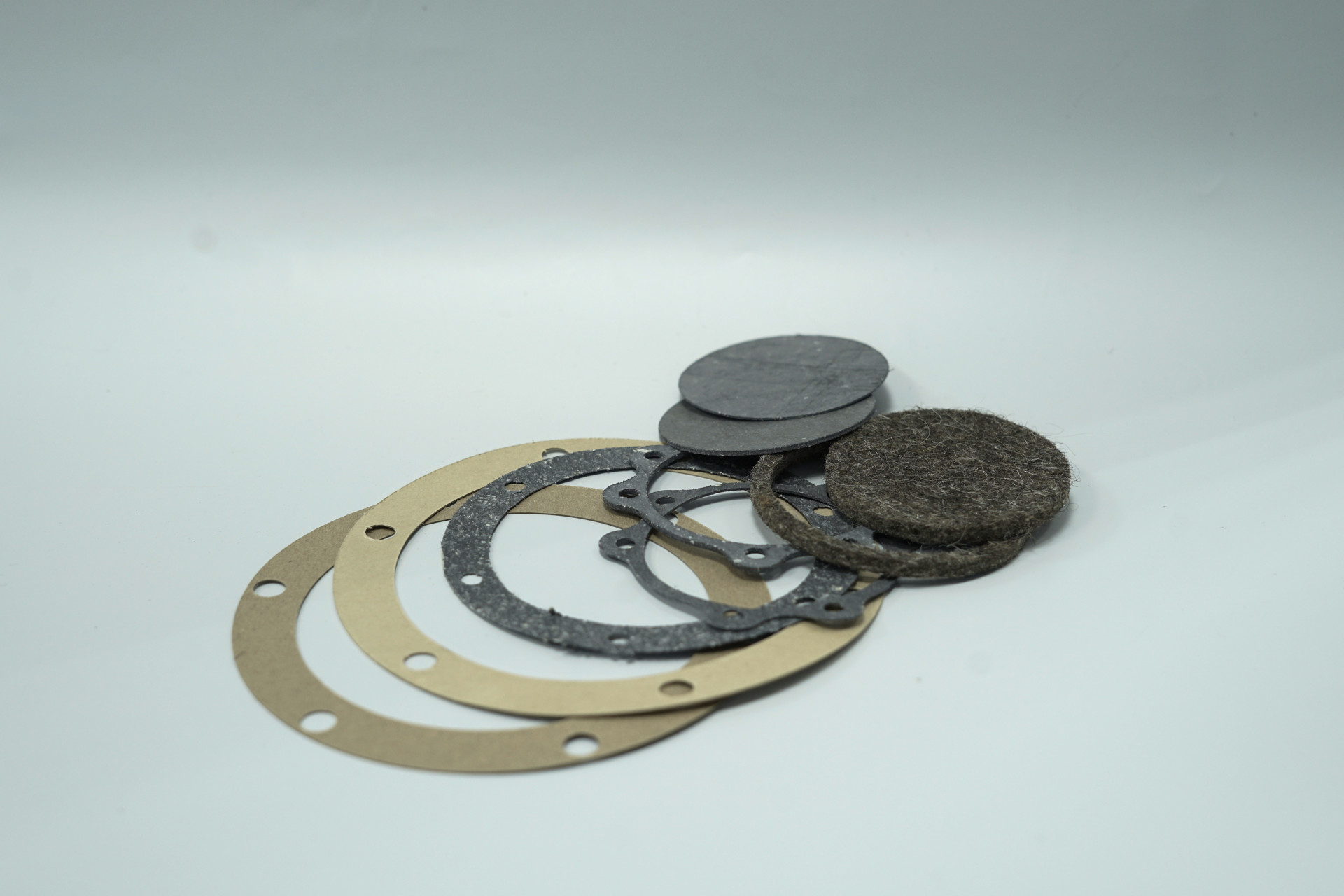

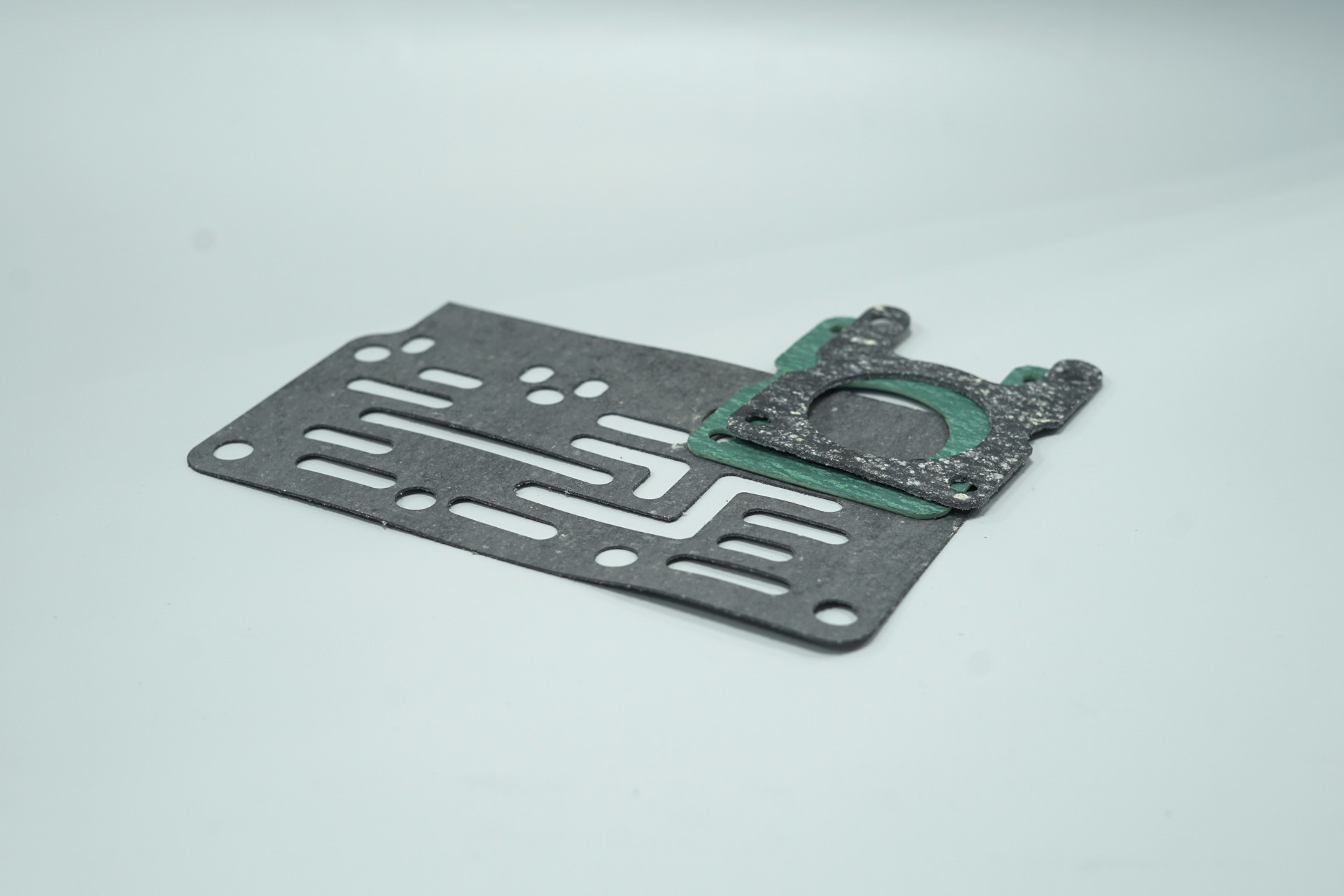

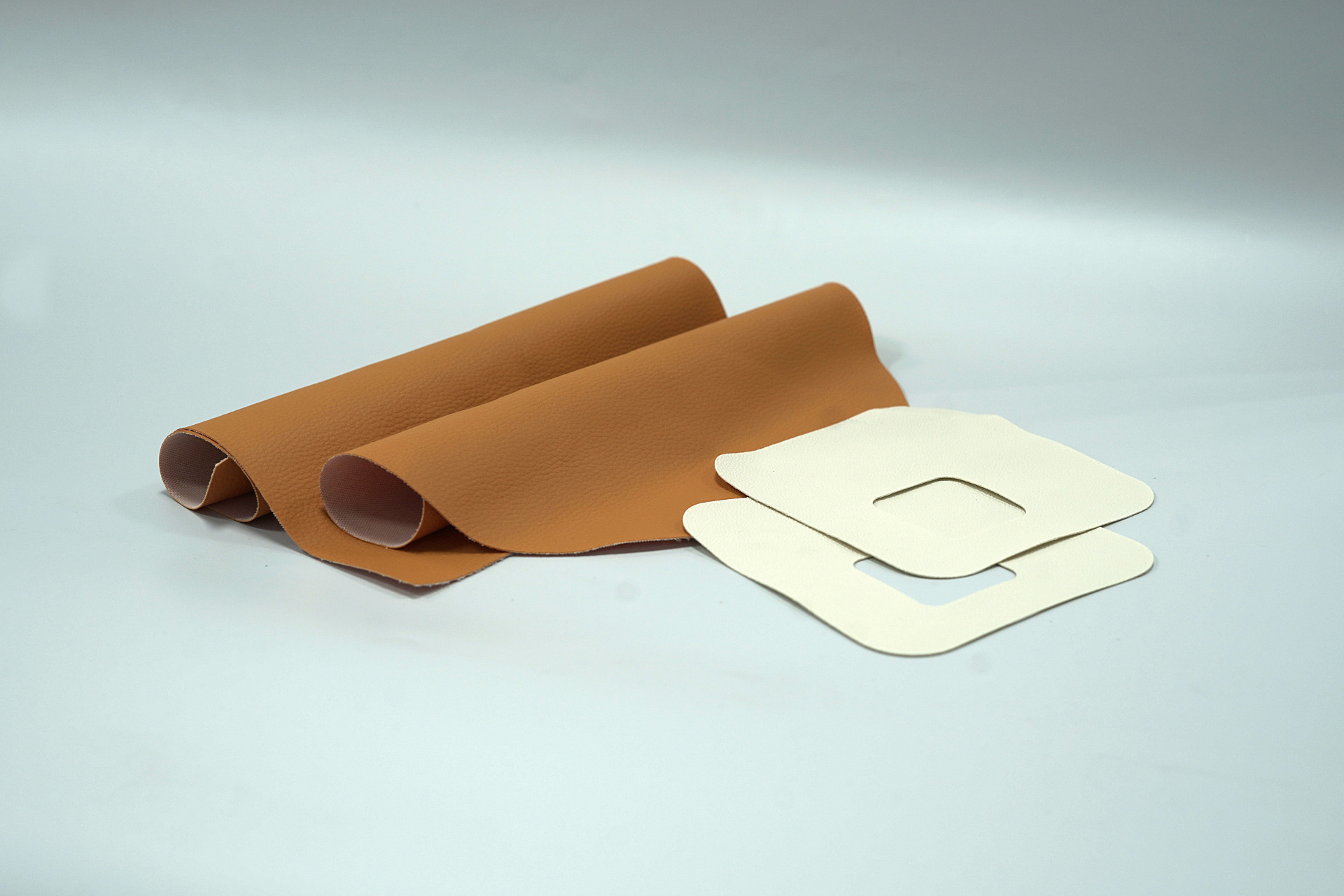

PET

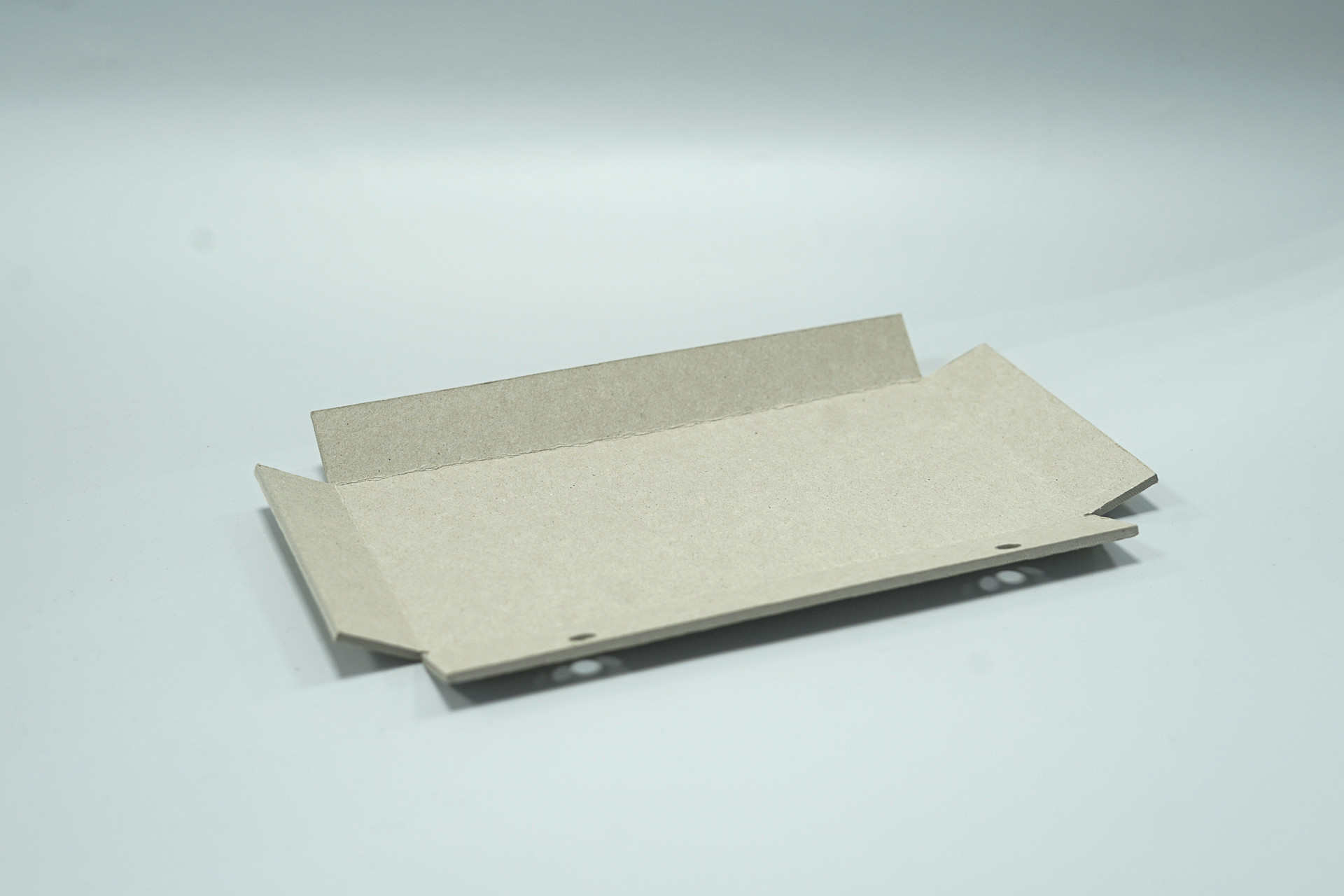

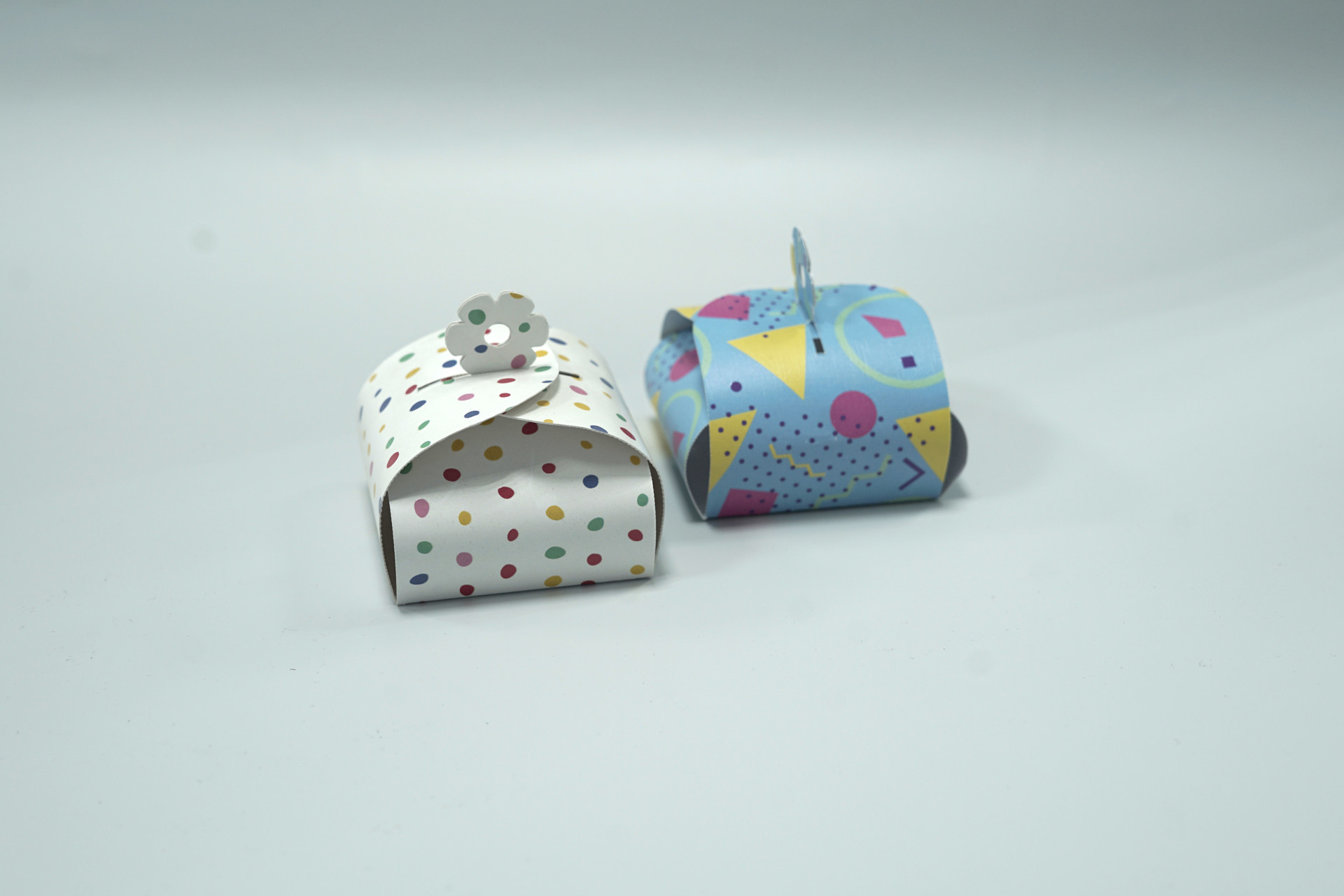

CARDBOARD

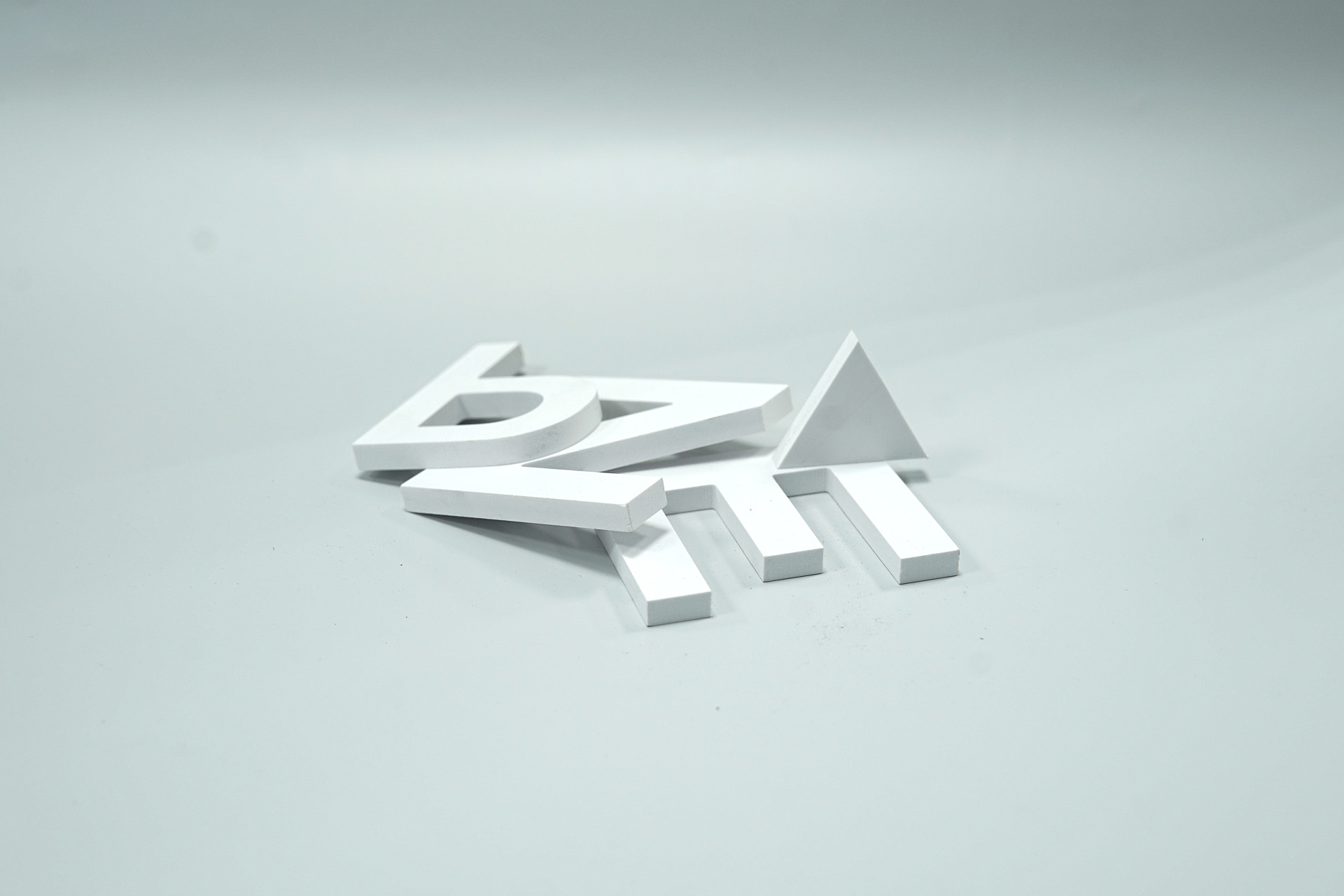

PVC 10 mm

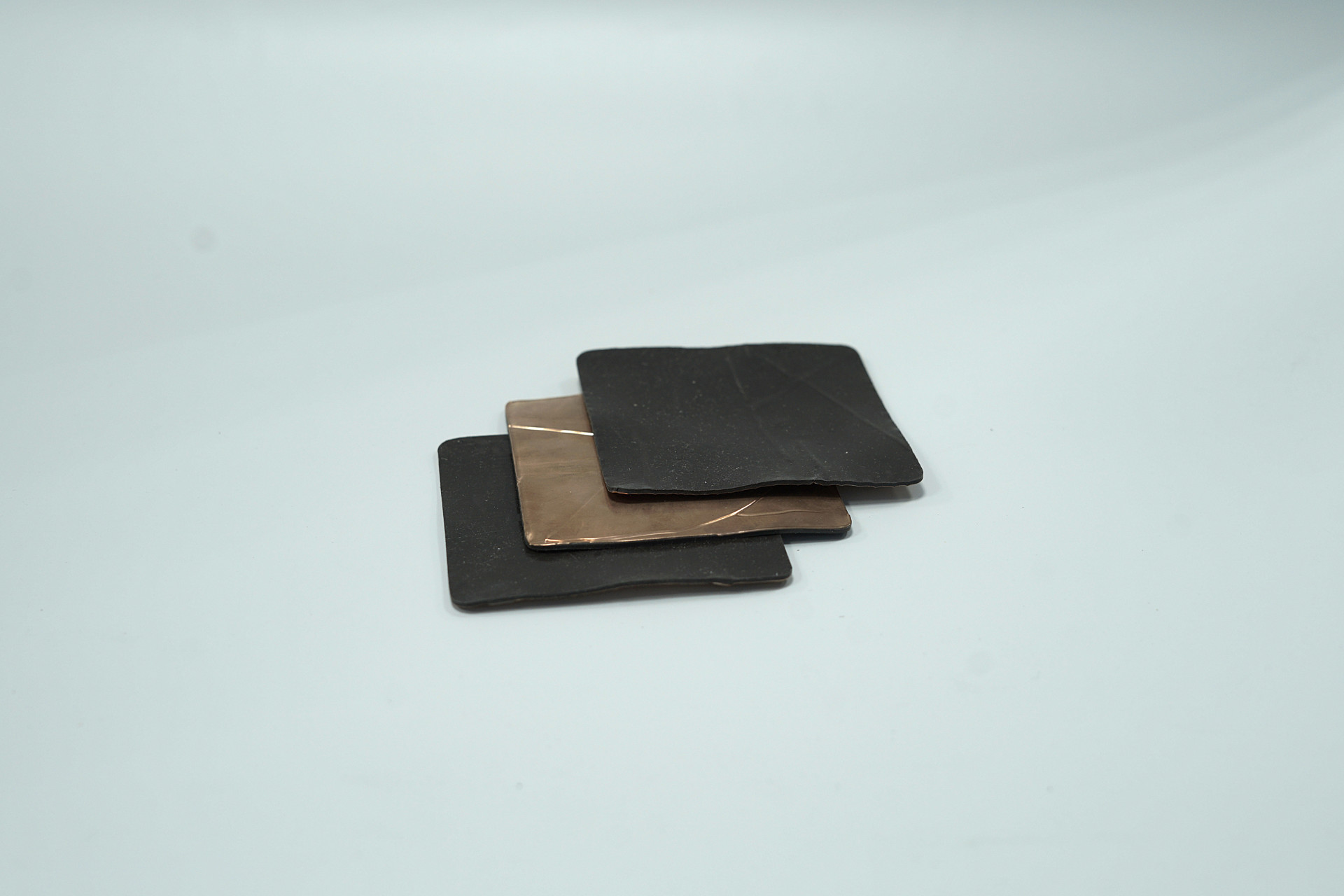

LINOLEUM

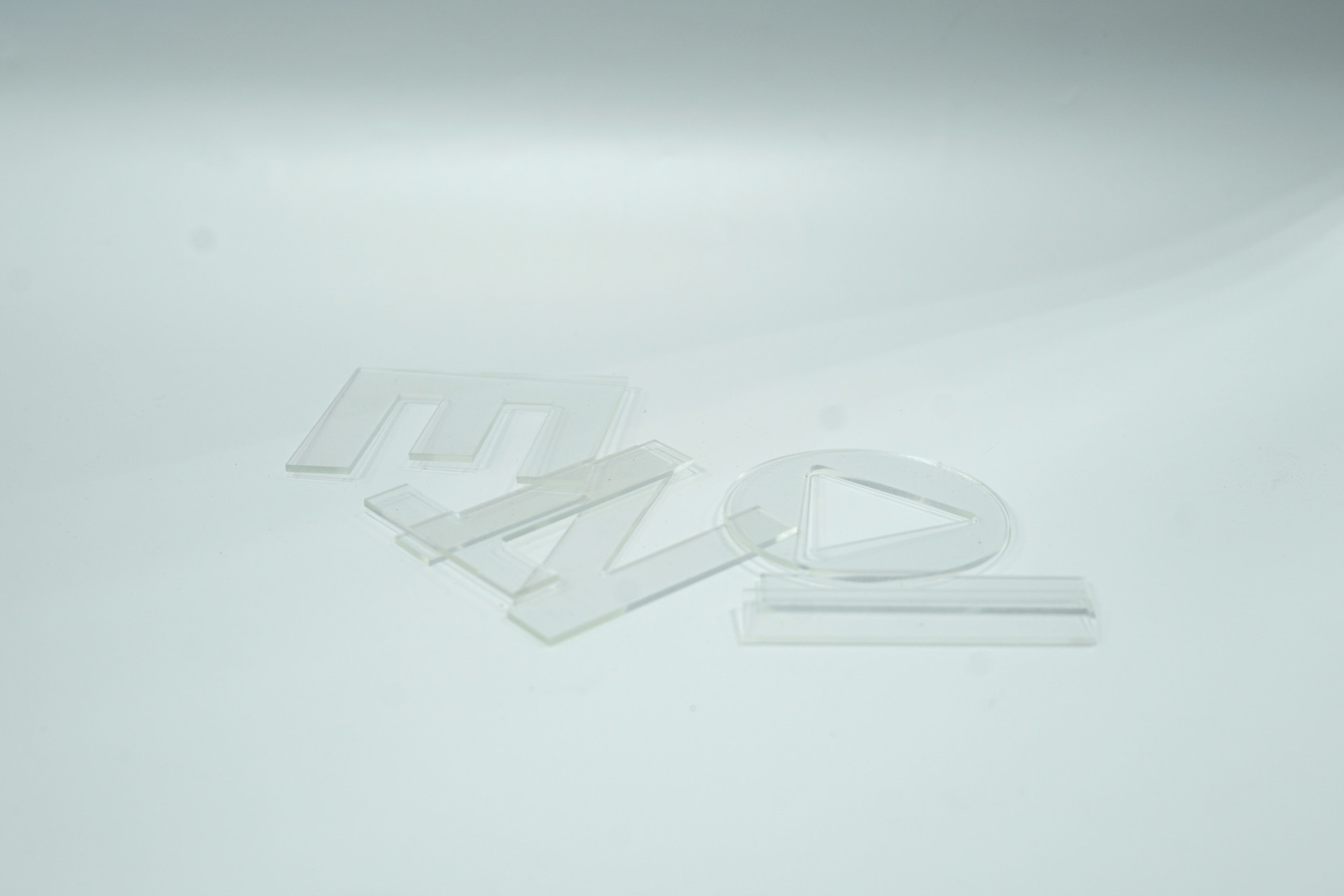

PLEXIGLASS 3 mm

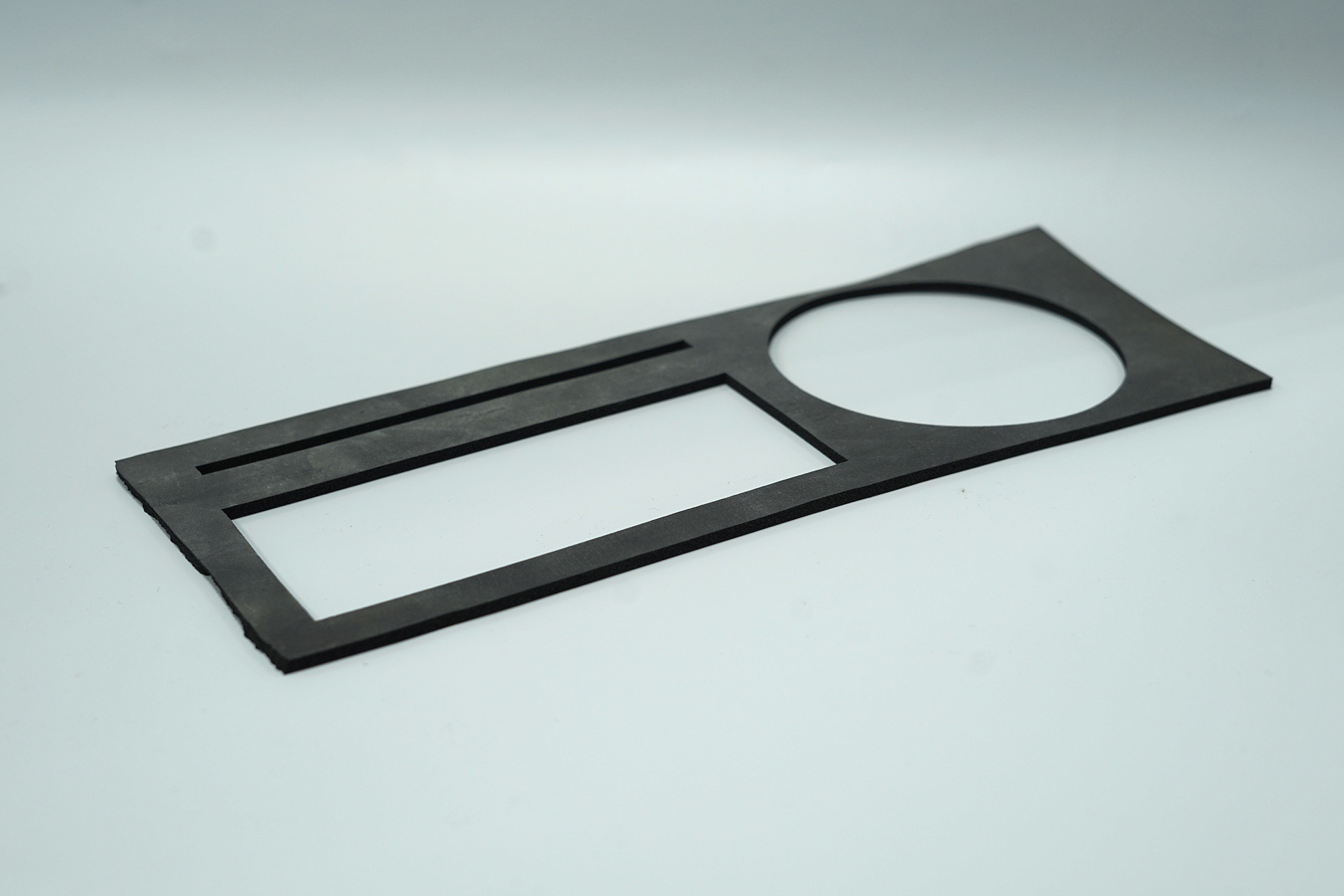

FOAMED RUBBER

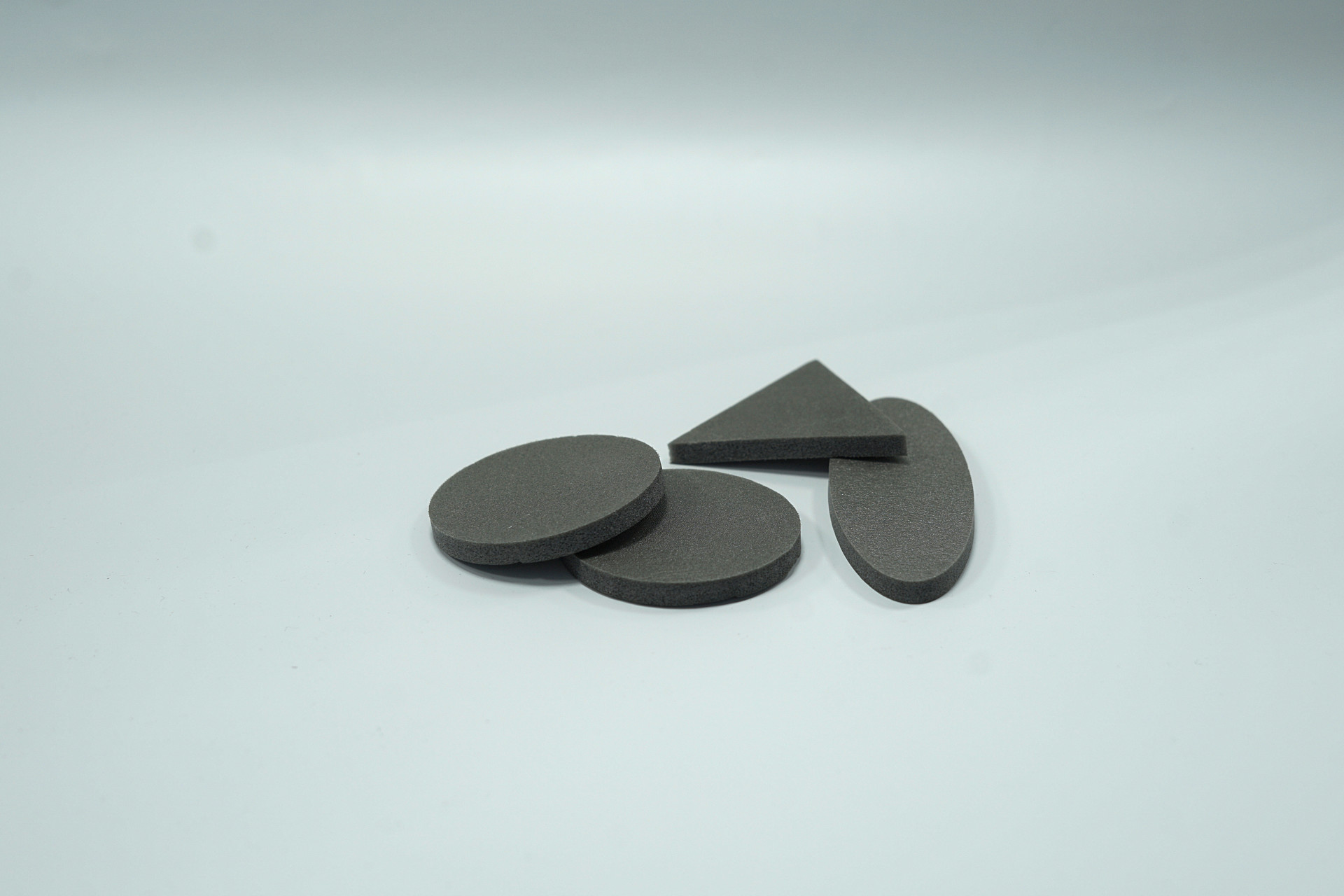

ISOLON 8 mm
FILM
RE-BOARD
FURNITURE CARDBOARD
COATING PLATE
OFFSET PRINTING RUBBER BLANKETS
BIGZEE VISION Professional Contour Cutting system is a reliable solution for the accurate and fast-finishing of printed images on any material.
Our company offers the possibility to choose between professional contour cutting BIGZEE VISION and a simplified cutting system using registration marks.
BIGZEE CUTTER can be easily integrated with BIGPRINTER using SMART PRINT&CUT RIP module for optimizing both processes
BIGZEE COUNTER software helps to control workflows.
Bigprinter Digital Innovation LLC is a business partner that has been trusted from 2002!
More than 100 employees. Experienced developers, designers and engineers successfully implement company projects.
We are engaged in the design and manufacture of several types of specialized machines. Own manufacture provides the ability to control the reliability, quality of equipment, and also allows you to offer customers service and technical support.
Fill out the form and our managers will contact you and send you a commercial offer.
